SenseCAP Solar Node P1-Pro MeshCore
119,00 €
% 120,00 € (0.83% gespart)
Versandfertig in 10 Tagen, Lieferzeit 1-3 Tage
Produktinformationen "SenseCAP Solar Node P1-Pro MeshCore"
Einer der besten Mesh Repeater auf dem Markt.
This device is pre-flashed with MeshCore repeaterfirmware. Powered by the Seeed XIAO nRF52840 Plus Module, Wio-SX1262 LoRa module, and L76K GPS modules, this solar-driven node leverages the nRF52 architecture for ultra-low power management—delivering long-range communication and precision positioning while maintaining full compatibility with the MeshCoreecosystem for decentralized, off-grid networking and mobile app integration.
- Utilizes a 5W solar panel in combination with 4*18650 batteries with a capacity of 3350mAh each. This setup ensures continuous operation even in the absence of sunlight, effectively solving the problem of outdoor power supply.
- The device comes pre-flashed with MeshCore firmware at the factory.
- Features a built-in XIAO L76K GPS module, enabling high-precision real-time positioning. It supports real-time sharing of location information, providing reliable location assurance for outdoor activities.
- It is suitable for long-term outdoor use.

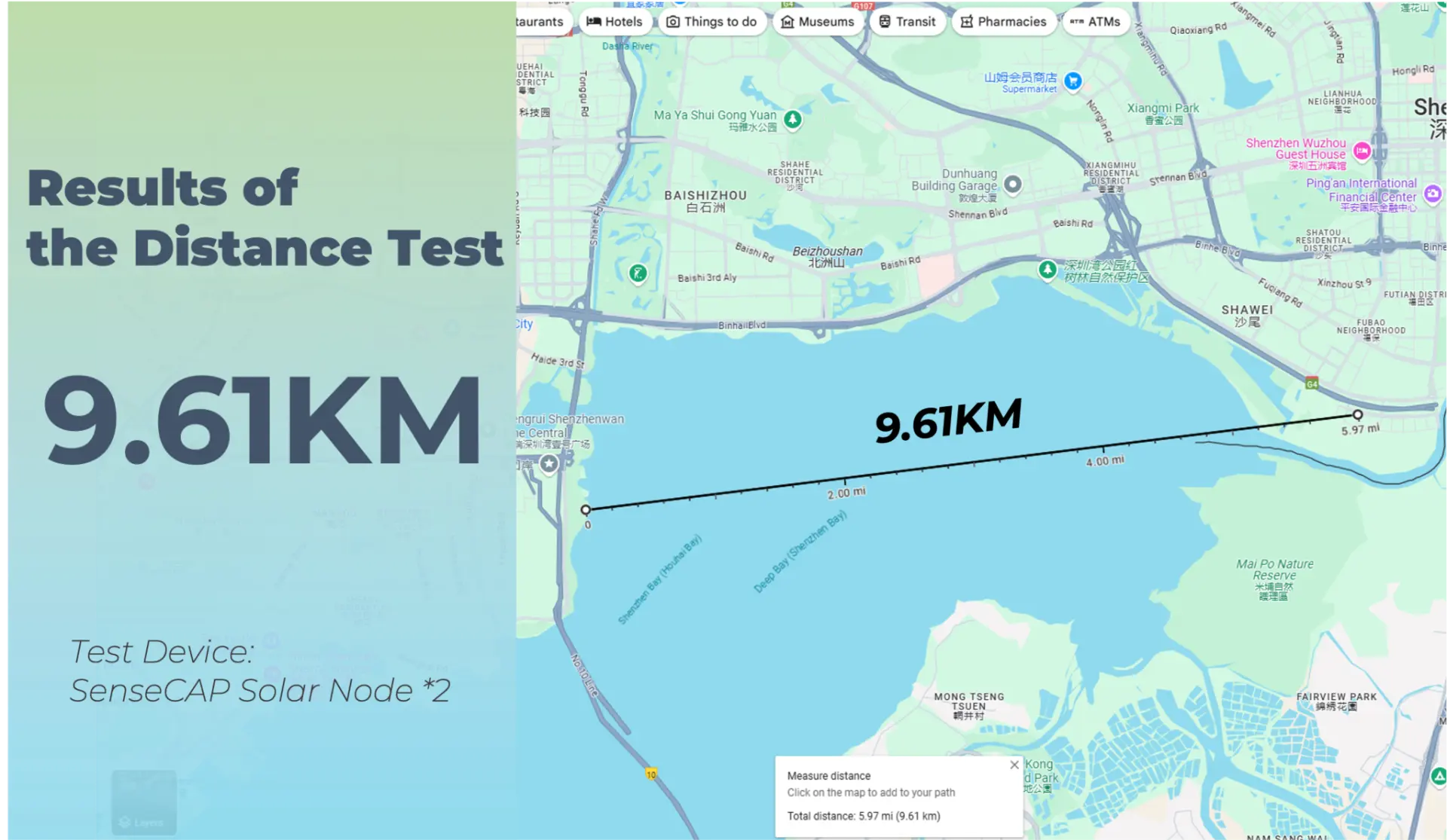

- The communication range between the two devices can reach 8-9KM in open areas. It can seamlessly integrate into the MeshCore ecosystem and be used as an outdoor node or repeater to easily expand the Mesh network, enhancing network coverage.
Main controller | Xiao nRF52840 Plus (Nordic nRF52840, ARM® Cortex®-M4 32-bit processor with FPU, 64 MHz, 256KB RAM, 1MB Flash, 2MB onboard Flash) |
LoRa Module | Wio-SX1262 (Semtch SX1262, TXOP=22dBm@862-930MHz) |
GPS Module | L76K (Support GPS/GLONASS/Galileo) |
Antenna | LoRa: Type: Rod-shaped rubber antenna Frequency range: 868-915MHZ Gain: 2dbi |
GNSS: GPS L1 C/A: 1575.42MHz GLONASS L1: 1602MHz BeiDou B1: 1561.098MHz | |
Bluetooth 5.0 | |
Solar Panel | 5W |
Interface | Grove *1: IIC/GPIO/UART |
USB-C debugging | |
Button | Power on/off |
Reset | |
User-defined | |
LED | Charging status indicator lights *2 |
Solar panel status indicator light *1 | |
Mesh heartbeat light *1 | |
User-defined *1 | |
Power supply | Type-C: 5V 1A |
| Solar power supply: 5V 1A |
Battery | 4 x 18650 lithium batteries (3350mAh each) ● Supporting Type-C and solar charging. ● Discharge environment：-40 ~ 60°C ● Charging environment: 0 ~ 50°C |
Certification | FCC、CE |

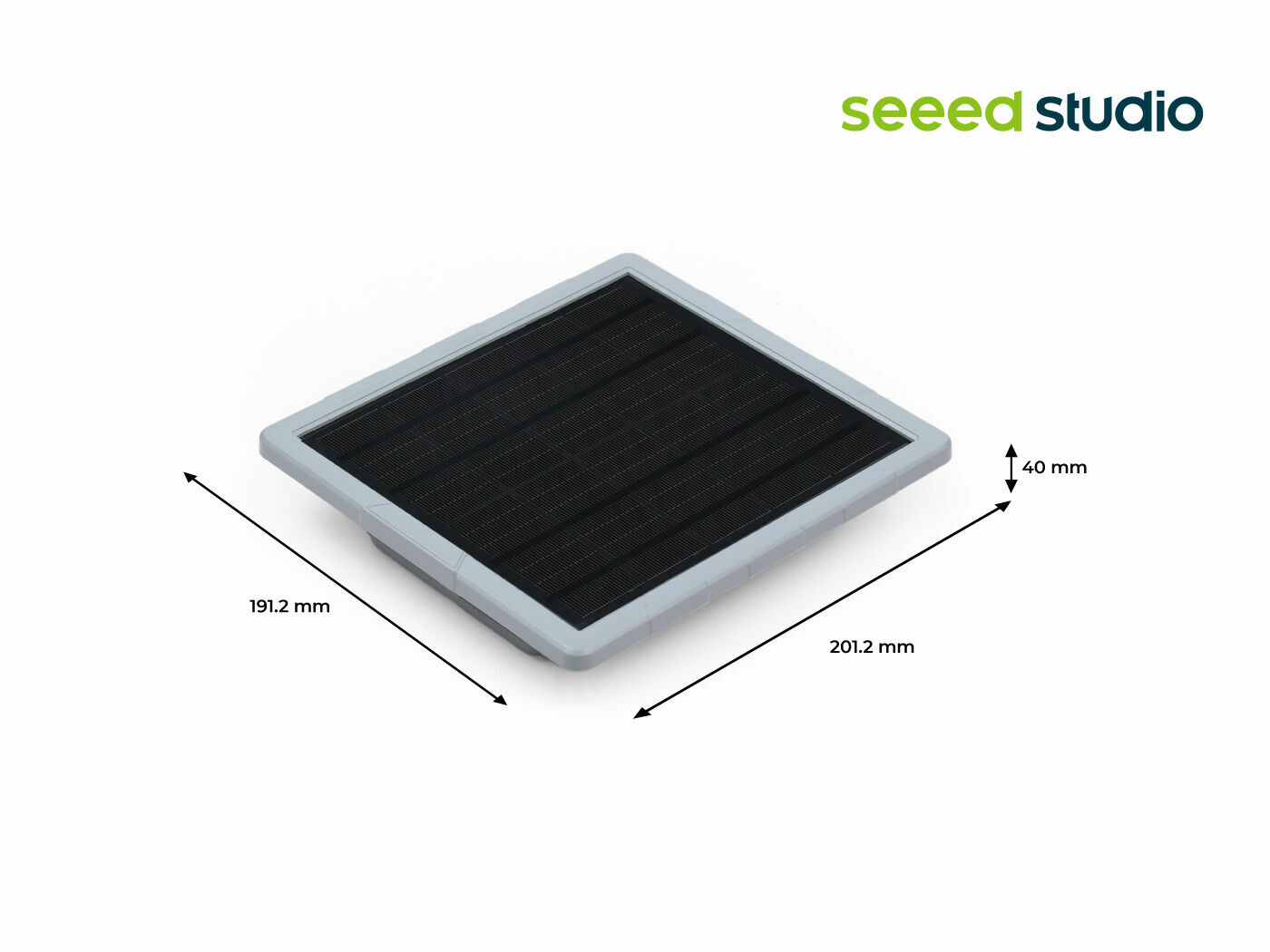

Dimension | 191.2 x 201.2 x 42.1 mm |

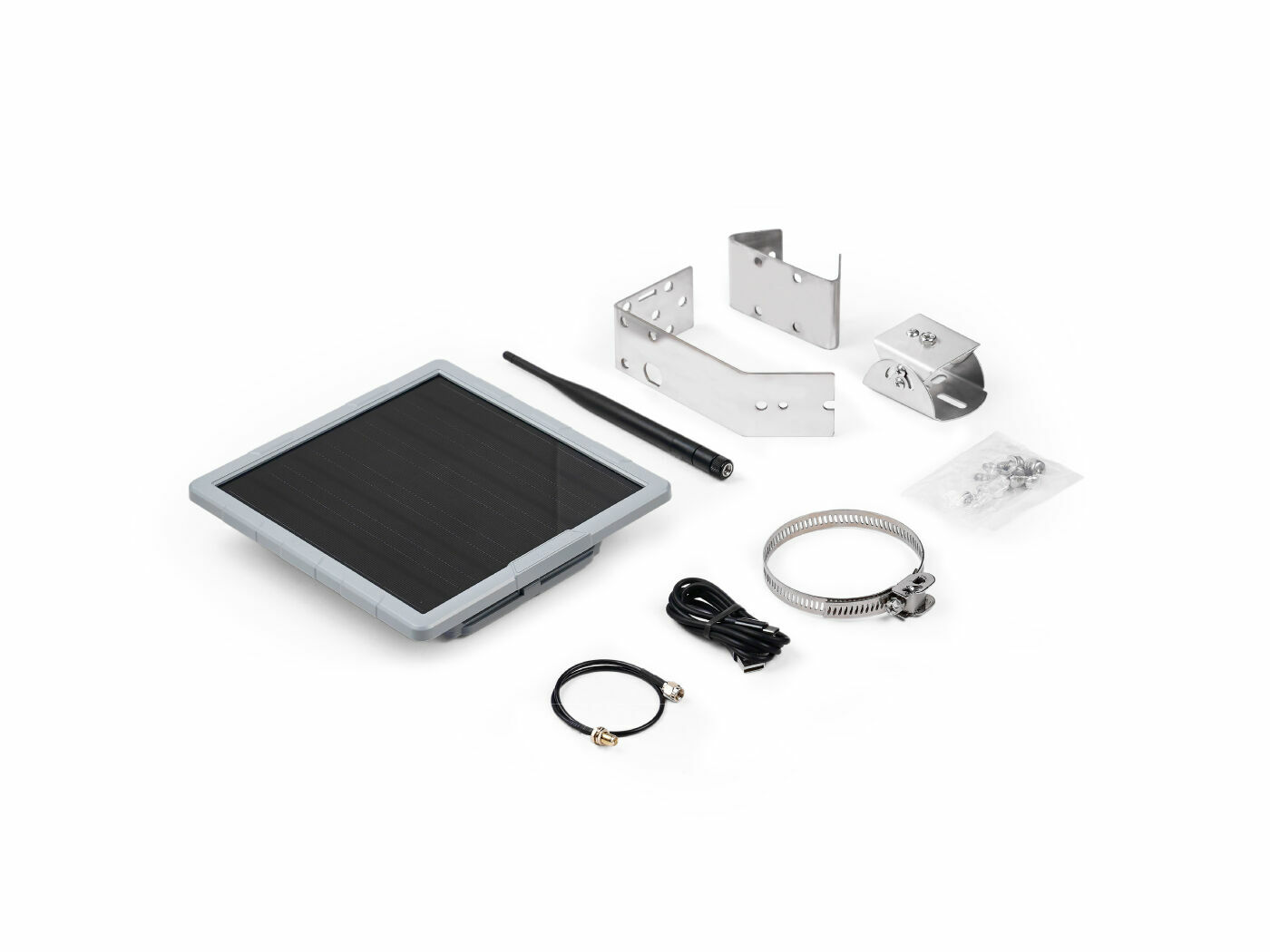

SenseCAP Solar Node P1-Pro (with GPS & battery) | x1 |
Mounting Brackets ● Universal Joint ● Connector ● Hoop Bracket ● Hoop Ring | x1 |
2dBi 868 - 915MHz Rubber Rod Antenna | x1 |
RF Cable: RP-SMA Male to RF-SMA Female-300mm | x1 |
1/4-20 UNC Hex Head Machine Screw, 6 mm Long(Screw Pack) | x2 |
Screw, Phillips Pan Head Machine, M6 × 14 mm, P1.0(Screw Pack) | x4 |
Black Type-C Cable | x1 |
User Manual | x1 |
