SenseCAP Card Tracker T1000-E für Meshtastic und MeshCore
49,00 €
Versandfertig in 10 Tagen, Lieferzeit 1-3 Tage
Produktinformationen "SenseCAP Card Tracker T1000-E für Meshtastic und MeshCore"
Einer der besten Mesh-Companions im Kartenformat.

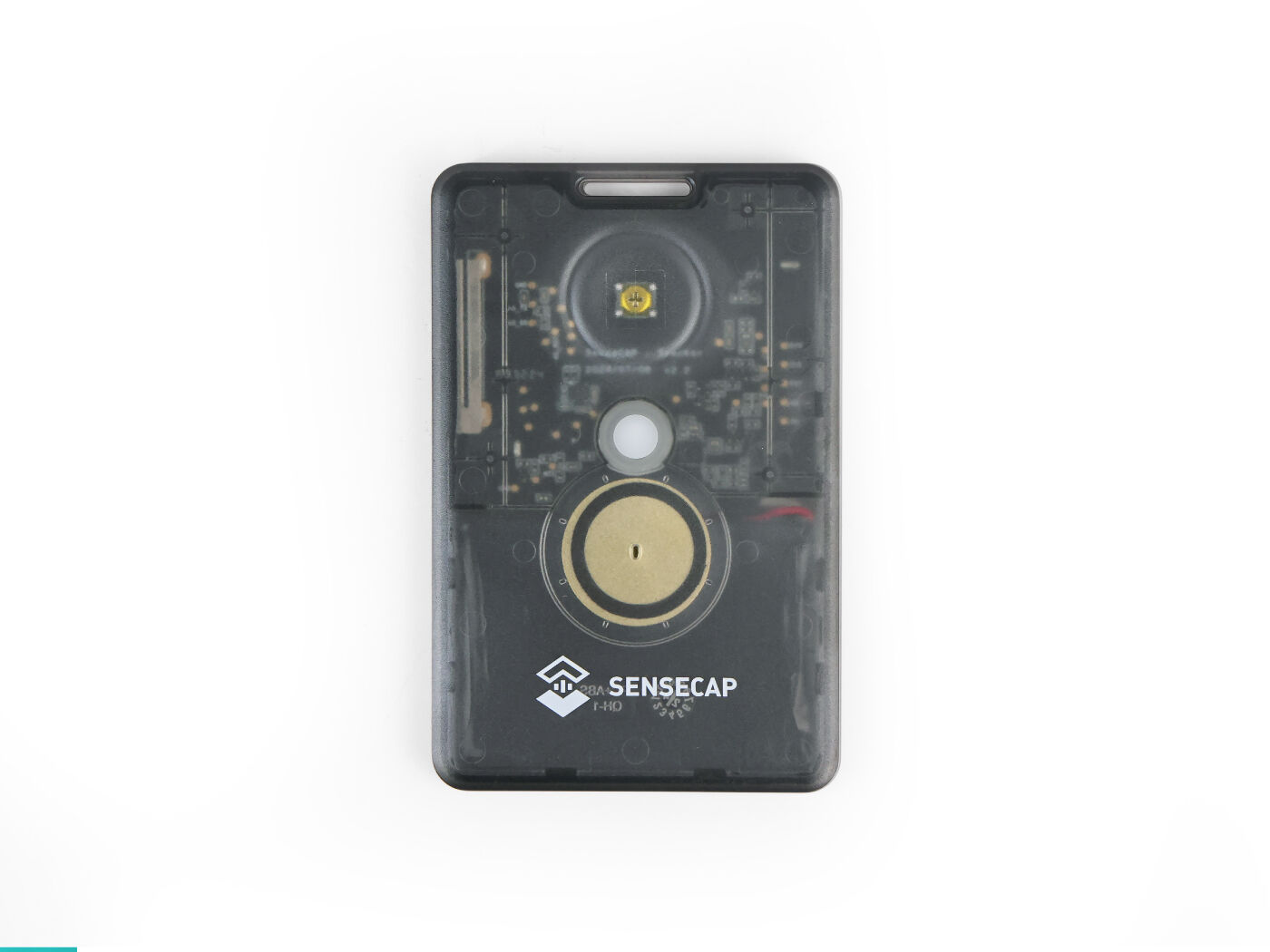

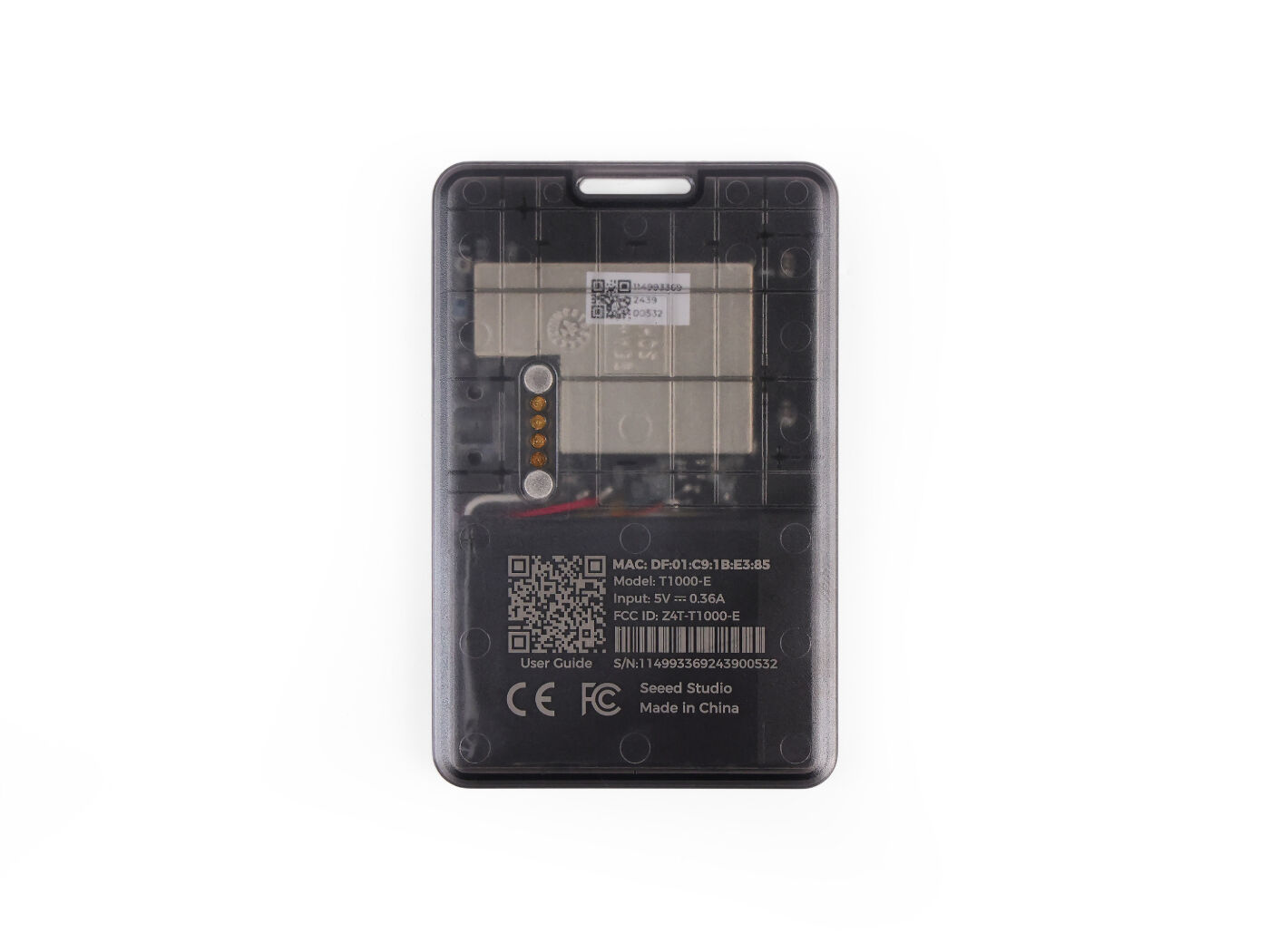

The SenseCAP T1000-E is a compact Meshtastic / Meshcore device designed for off-grid communication and location sharing. About the size of a credit card, it can be easily carried or attached to gear for outdoor use. Powered by Semtech’s LR1110 LoRa transceiver (863–928 MHz), Nordic’s nRF52840 processor, and the Mediatek AG3335 GNSS module, it enables reliable long-range LoRa communication and location updates within Meshtastic networks.
SenseCAP T1000-E is a ready-to-use GPS tracker powered by the Meshtastic network, built for off-grid communication and location sharing.Using low-power, long-range LoRa mesh networking, it allows you to send messages and share location even without cellular signal or internet access. Simply pair it with the Meshtastic mobile app to stay connected during hiking, camping, emergency response, and other outdoor activities.
Other additional features
- Multi-protocol support: Featuring nRF52840 and LR1110, it supports LoRa (global ISM bands in the 863-928 MHz range). After purchasing the T1000-E, you can freely choose your region in the Meshtastic app. It also supports Bluetooth 5.0, Thread, and Zigbee, ensuring compatibility with a wide range of devices and networks.
- Powerful Positioning Capabilities: Integrated with the Mediatek‘s AG3335 GPS chip, it provides high-precision positioning services.
- Expandable Interfaces: Designed with four pogo pins, it supports USB interface for DFU (Device Firmware Upgrade), serial logging, and API interface, simplifying device management and debugging.
- Open Source Support: Compatible with the Meshtastic open-source mesh networking protocol, suitable for long-range and low-power communication needs.
- General
Network protocol | LoRa（Supports 863-928 MHz range）, Bluetooth v5.1 |
Temperature | Range: -20 to 60℃; Accuracy: ± 1℃ (min ±0.5℃, max ±1℃) Resolution: 0.1℃ |
Light | 0 to 100% (0% is dark, 100% is brightest) |
3-Axis Accelerometer | 3-Axis Accelerometer to detect movement (Not currently used in the Meshtastic firmware) |
LED and Buzzer | 1*LED and 1* buzzer to indicate status |
Button | 1* Button to operate |
Antenna | Internal (GNSS/LoRa/Wi-Fi/BLE) |
Communication Distance | 2 to 5km (depending on antenna, installation, and environments) |
IP Rating | IP65 |

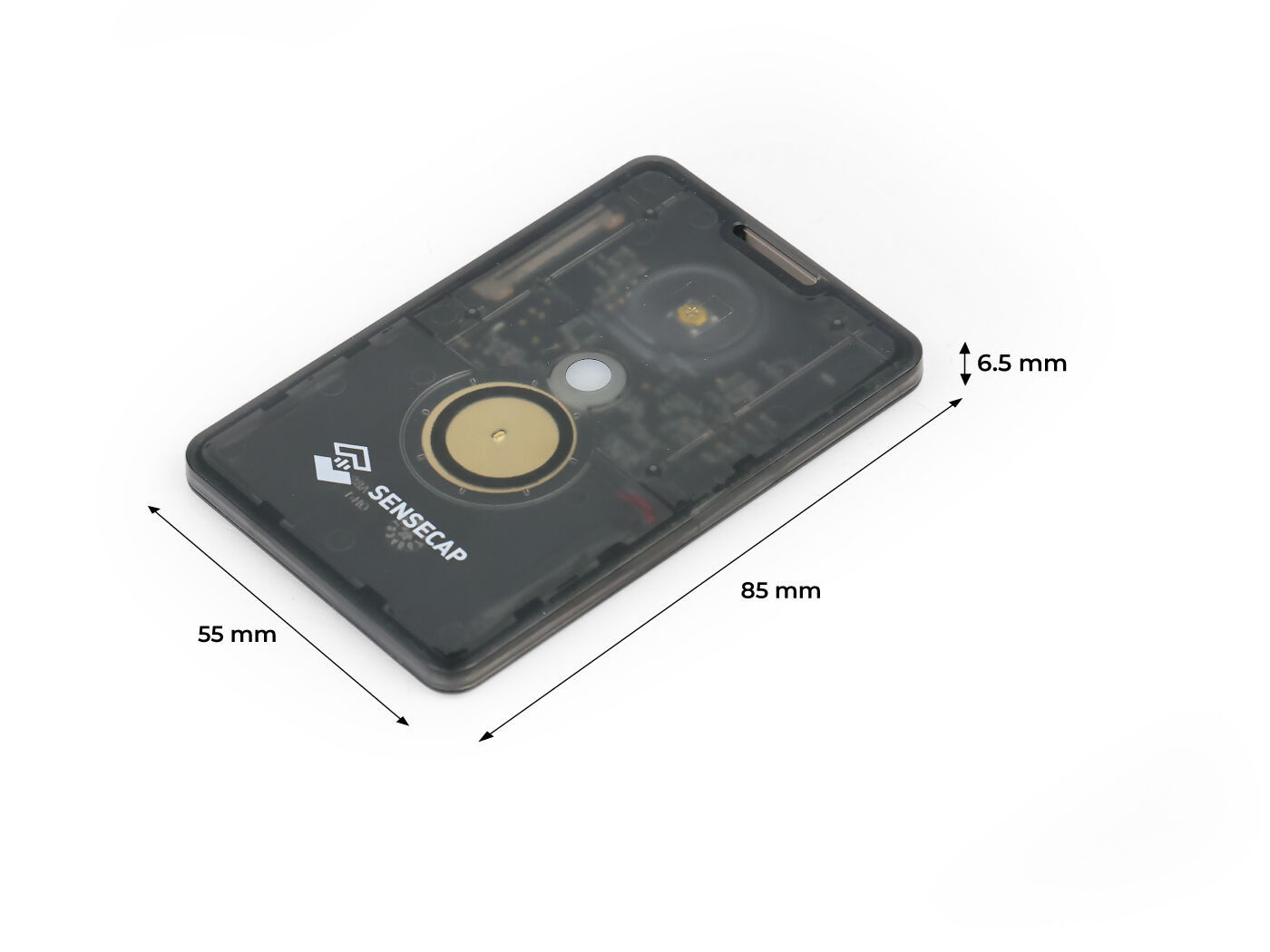

Dimensions | 85 * 55 * 6.5 mm |
Device Weight | 32g |
Operating Temperature | -20℃ to +60℃ |
Operating Humidity | 5% - 95% (No condensation) |
Certification | CE /FCC |
- Battery
Battey Capacity | Rechargeable lithium battery, 700mAh |
Battery Life Monitoring | Periodic uplink battery level |
Charge Cable (Adapter not included) | USB magnetic charging cable, 1 meter |
Power Input Voltage | 4.7 to 5.5V DC |
Charging Temperature Limit | 0 to +45℃ |
